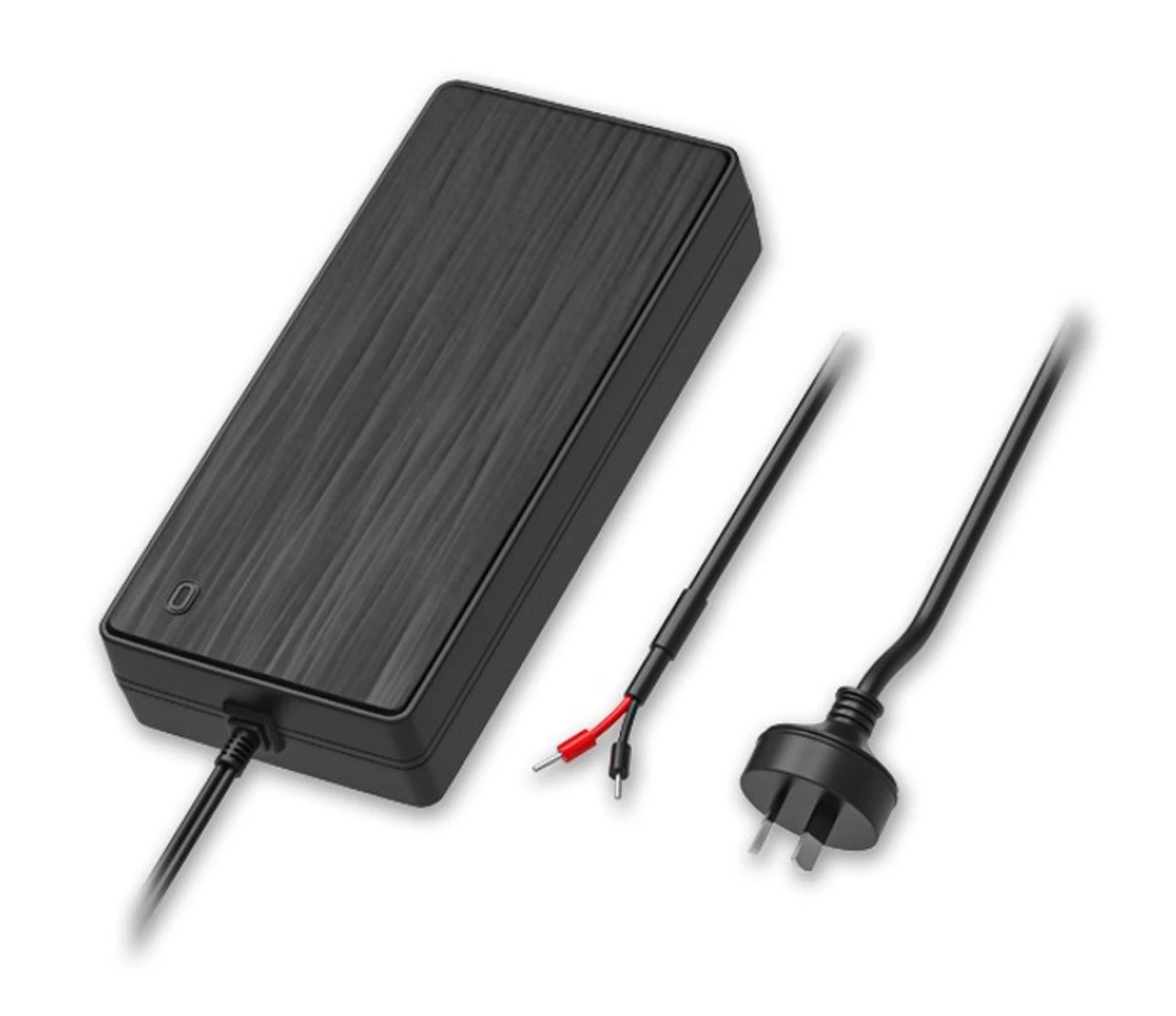

TELTONIKA 2 Pin AU Power Supply 250W – For Use With TSW200

Teltonika 2 Pin AU Power Supply 250W – For use with TSW200

---

GENERAL

Input voltage   100 – 240 VAC Input frequency   50/60 Hz Input current   3.9 A Input connector   AU (Type I) Output voltage   54 V Output current   4.62 A Output connector   2-PIN, with cord end terminals Weight   910 g

---

ADDITIONAL

Input voltage absolute maximum rating   90 – 262 VAC Input frequency absolute maximum rating   47 – 63 Hz Maximum input inrush current   60 A Output voltage absolute maximum rating   51.3 – 56.7 VDC Short circuit protection   ✓ HIPOT (dielectric withstand test)   Primary to Secondary: 1500 VAC Certification  Safety: IEC62368-1 (CB Scheme)  EMC: AS/NZS CISPR 32:2015, EN 55032:2015,  EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009,  EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012,  EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010,  EN 61000-4-11:2004
