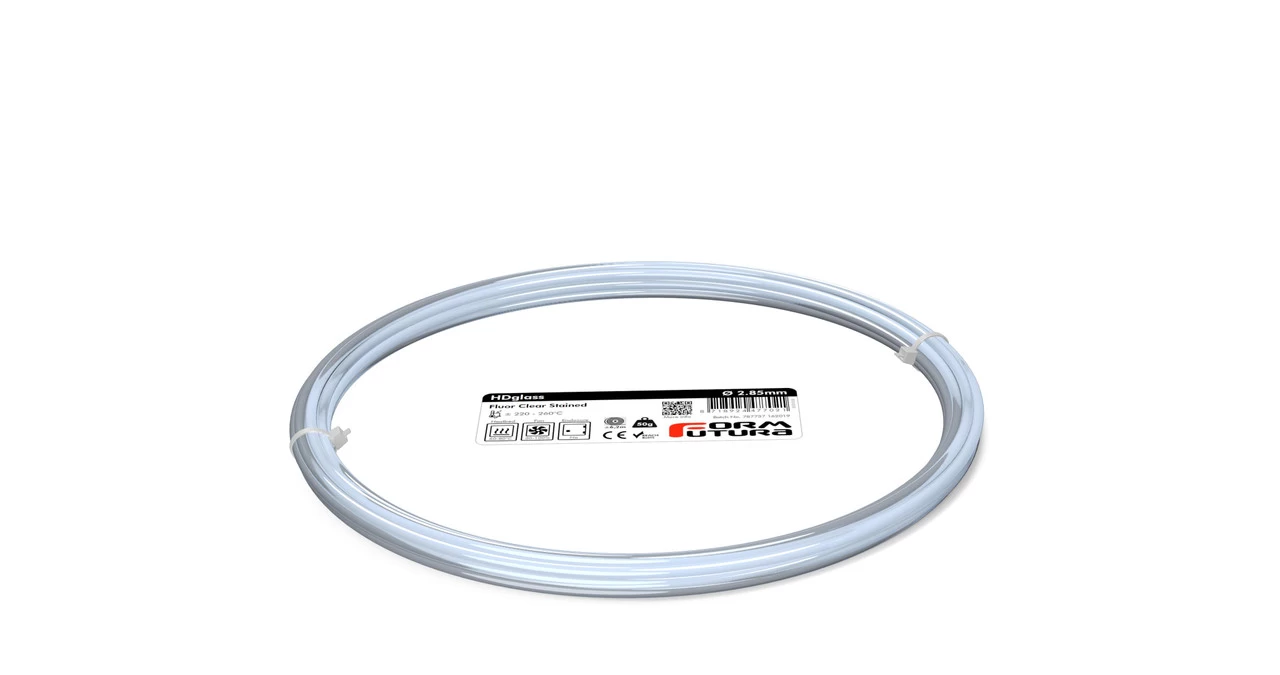

PETG Filament HDglass 2.85mm Fluor Clear Stained 50 Gram 3D Printer Filament

HDglass™

HDglass is a high performance filament based on an unique PETG blend resulting in an amorphous, high strength, high gloss and ultra-transparent 3D printer filament.

HD stands for “Heavy Duty”, as HDglass is developed to have an optimal thermal stability and by that perfect 3D printing flowing behaviour, resulting in a very easy to print 3D printer filament with a remarkable high gloss, transparency and excellent properties with respect to strength, toughness and temperature resistance.



Unique features

• Extremely transparent and high gloss
  • o   90% optical light transmittance with only 1% of haze
• Easy to print
  • o   Nearly warp-free and perfect inter-layer adhesion
  • o   Good first layer adhesion to a heated glass print bed and many other surfaces
• Compatible for printing at high speed
• Odourless processing/printing
• High strength and toughness compared to similar materials
• Watertight printing
• Engineered to be compliant to FDA food and drink contact articles





General printing guidelines *



Nozzle size: ≥ 0.15mm	Layer height: ≥ 0.1mm	Flow rate: ± 110%
Print temp: ± 195 – 225° C	Print speed: High	Retraction: Yes – 6mm
Heat bed: ± 65 – 75° C	Fan speed: 50-100%	Experience level: Beginner



*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offsets that it is extremely difficult to give an overall one-size-fits-all setting.



HDglass color terminology

HDglass comes in a variety of colors ranging from extremely clear to completely opaque.

Please see below table with explanation about the color terminology used for our HDglass filaments.



Transparent / Clear	Translucent colored	Slightly translucent colored	Opaque
Clear	See Through	Stained	Blinded







Filament length



ρ: 1.27 g/cc	50 gr coil	0.75 Kg spool	2.3 Kg spool	4.5 Kg spool	8 Kg spool
Ø 1.75mm	± 16.4m	± 246m	± 753m	± 1473m	± 2619m
Ø 2.85mm	± 6.2m	± 93m	± 284m	± 555m	± 987m
