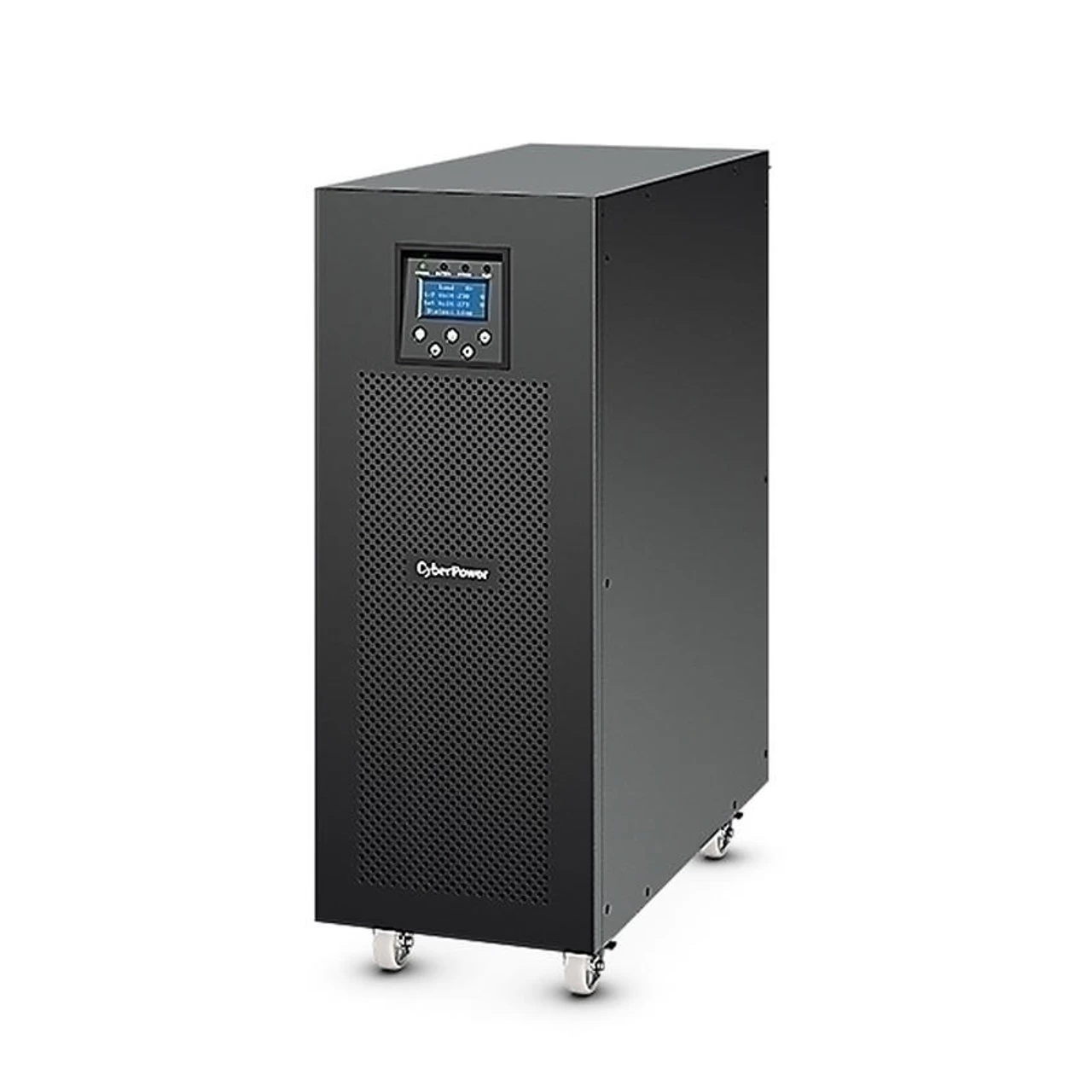

CYBERPOWER OLS6000E Premium Smart App Tower UPS – 6000VA/5400W

CP 6000VA/5400W Tower UPS

Specifications:

• Phase: Single Phase
• Form Factor: Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 96%
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): 230
• Input Voltage Range ( Vac ): 110 – 276
• Adjustable Voltage Range ( Vac ): 0-80% Load for 110 – 276 Vac | 0-100% Load for 176 – 276 Vac
• Input Frequency ( Hz ): 50 ± 5 | 60 ± 6
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 27.3
• Input Power Factor: 0.99
• Input Connector Type: Hardwire Terminal Block
• Capacity (VA): 6000
• Capacity (Watts): 5400
• On Battery Waveform: Pure Sine Wave
• On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1%
• Power Factor: 0.9
• ECO Mode Voltage Tolerance: ± 10 %
• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
• Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
• Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec
• Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
• Harmonic Distortion (Linear Load): THD?2%
• Harmonic Distortion (Non-linear Load): THD?5%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Maintenance Bypass: Yes
• Outlet(s) – Total: 1
• Outlet Type: Hardwire Terminal Block x 1
• Typical Transfer Time ( ms ): 0
• Runtime at Half Load ( min ): 18
• Runtime at Full Load ( min ): 7
• Typical Recharge Time ( Hours ): 7
• Maximum Charging Current ( A ): 1
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• User-replaceable: No
• Compatible Extended Battery Module (EBM): BPSE240V47A
• Max. EBM Quantity ( pcs ): 15
• Surge Suppression ( Joules ): 445
• EMI/RFI Filtration: Yes
• HID Compliant USB Port(s): 1
• Emergency Power Off (EPO) Port: Yes
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
• Enclosure Construction: Metal
• Dimensions: 260 x 708 x 550mm
• Weight: 70kg
• Online Thermal Dissipation ( BTU/hr ): 1603
• Audible Noise at 1.5M from Surface of Unit: 60 dBA
• Certifications: CE / RoHS
• : 2 Years

Features:

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Maintenance Bypass Switch
• Smart Battery Management (SBM)
• Surge and Spike Protection
• LCD Status Display
• PowerPanel Management Software
• ECO Mode
• Overload Protection
• Zero Transfer Time
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)

What’s in the box?

• 1 x OLS6000E UPS
• 1 x Parallel Port Cover Plate
• 1 x Terminal Cover
• 1 x Terminal Splices
• 1 x USB Cable
• 1 x User’s Manual
