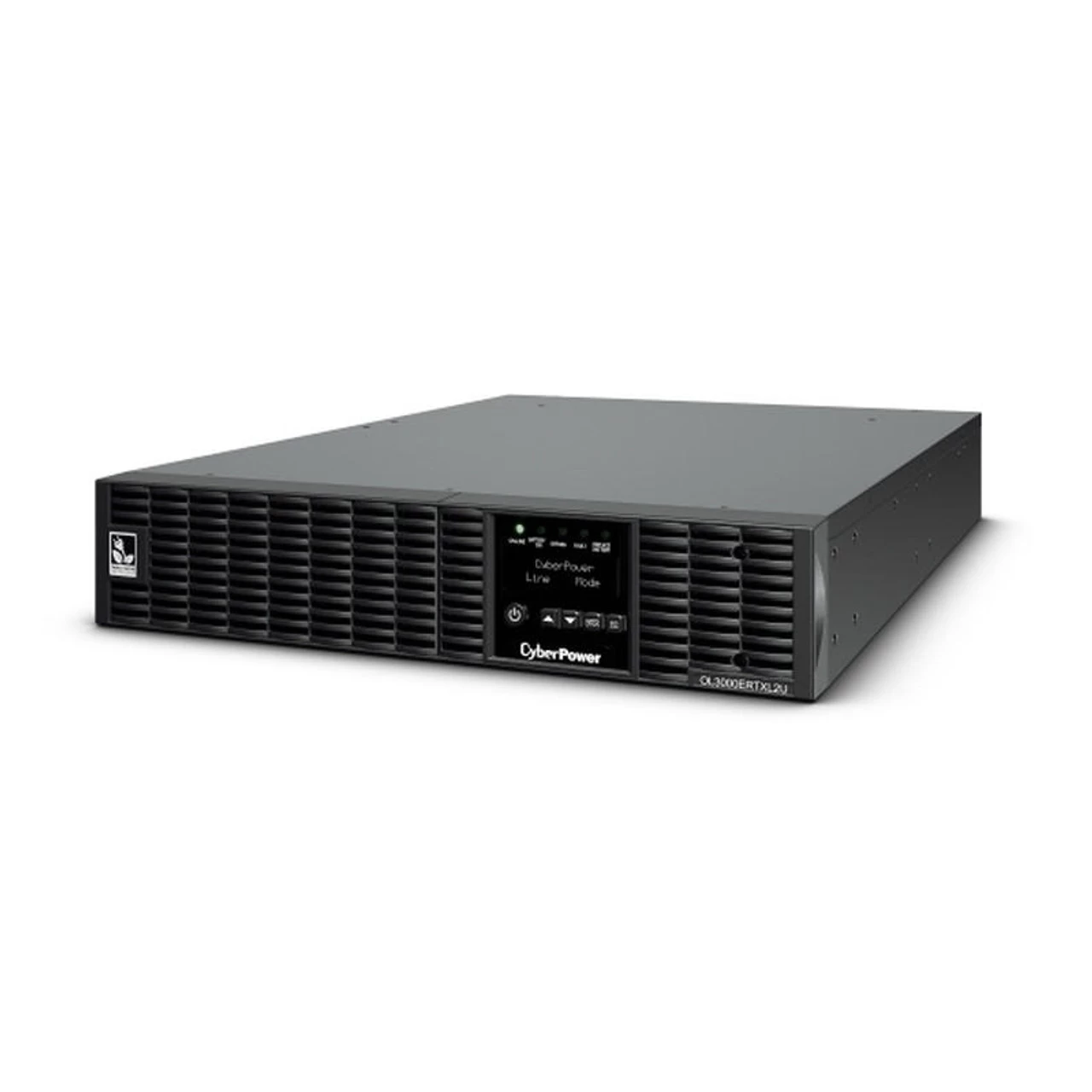

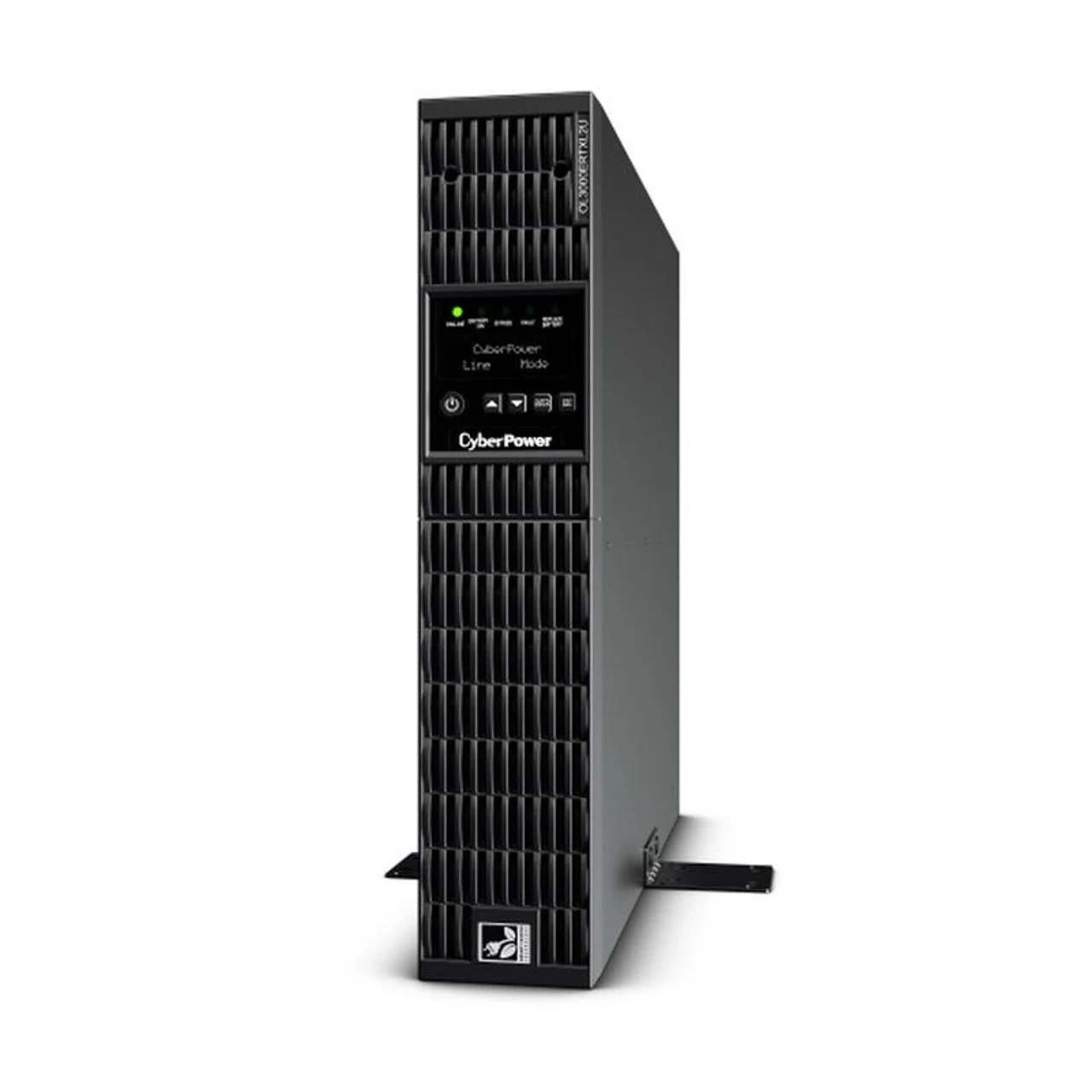

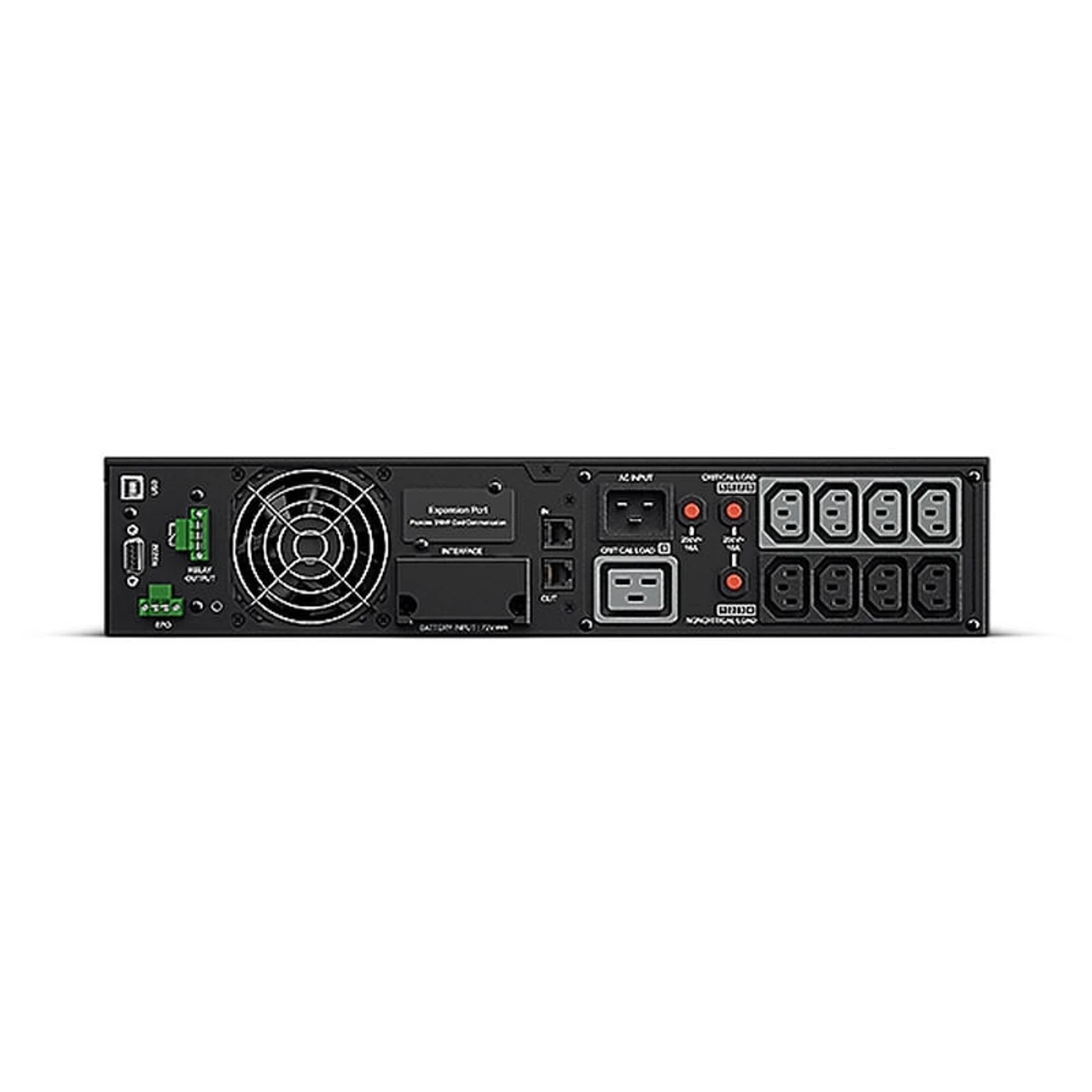

CYBERPOWER OL3000ERTXL2U Smart App Racktower UPS System

CP OL3000VA Rack Tower UPS

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount / Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Input Voltage Range ( Vac ): 190 – 300
• Input Frequency: 50 ± 10 | 60 ± 10Hz
• Rated Input Current ( A ): 15
• Input Power Factor: 0.99
• Input Connector Type: IEC C20
• Detachable Power Cord Plug Type: IEC C19 x 1
• Power Cord Length: 3m
• Capacity (VA): 3000
• Capacity (Watts): 2700
• Power Factor: 0.9
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
• Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
• Harmonic Distortion (Linear Load): THD?3%
• Harmonic Distortion (Non-linear Load): THD?5%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Outlet(s) – Total: 9
• Outlet Type: IEC C13 x 8 | IEC C19 x 1
• Outlet(s) – Battery & Surge Protected: 9
• Outlet(s) – Critical Load (CL): 5
• Outlet(s) – Non-Critical Load (NCL): 4
• Typical Transfer Time ( ms ): 0
• Runtime at Half Load ( min ): 11
• Runtime at Full Load ( min ): 3
• Typical Recharge Time ( Hours ): 5
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• Hot-swappable: Yes
• Battery Cartridge (RBP): RBP
• Compatible Extended Battery Module (EBM): BPE72V60ART2US
• Max. EBM Quantity ( pcs ): 10
• Surge Suppression ( Joules ): 1335
• EMI/RFI Filtration: Yes
• SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
• Enclosure Construction: Metal
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Dimensions: 433 x 88 x 600mm
• Weight: 32kg
• Audible Noise at 1.5M from Surface of Unit: 55 dBa
• Certifications: CE | BSMI | C-Tick | RoHS
• : 2 Years

Features:

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Critical/Non-critical Load Outlets
• Smart Battery Management (SBM)
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• LCD Status Display
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
• ECO Mode
• Overload Protection
• Zero Transfer Time
• Hot-swappable Batteries
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Detachable LCD Panel
• PowerPanel Management Software
• Rack/Tower Convertible Configurations
