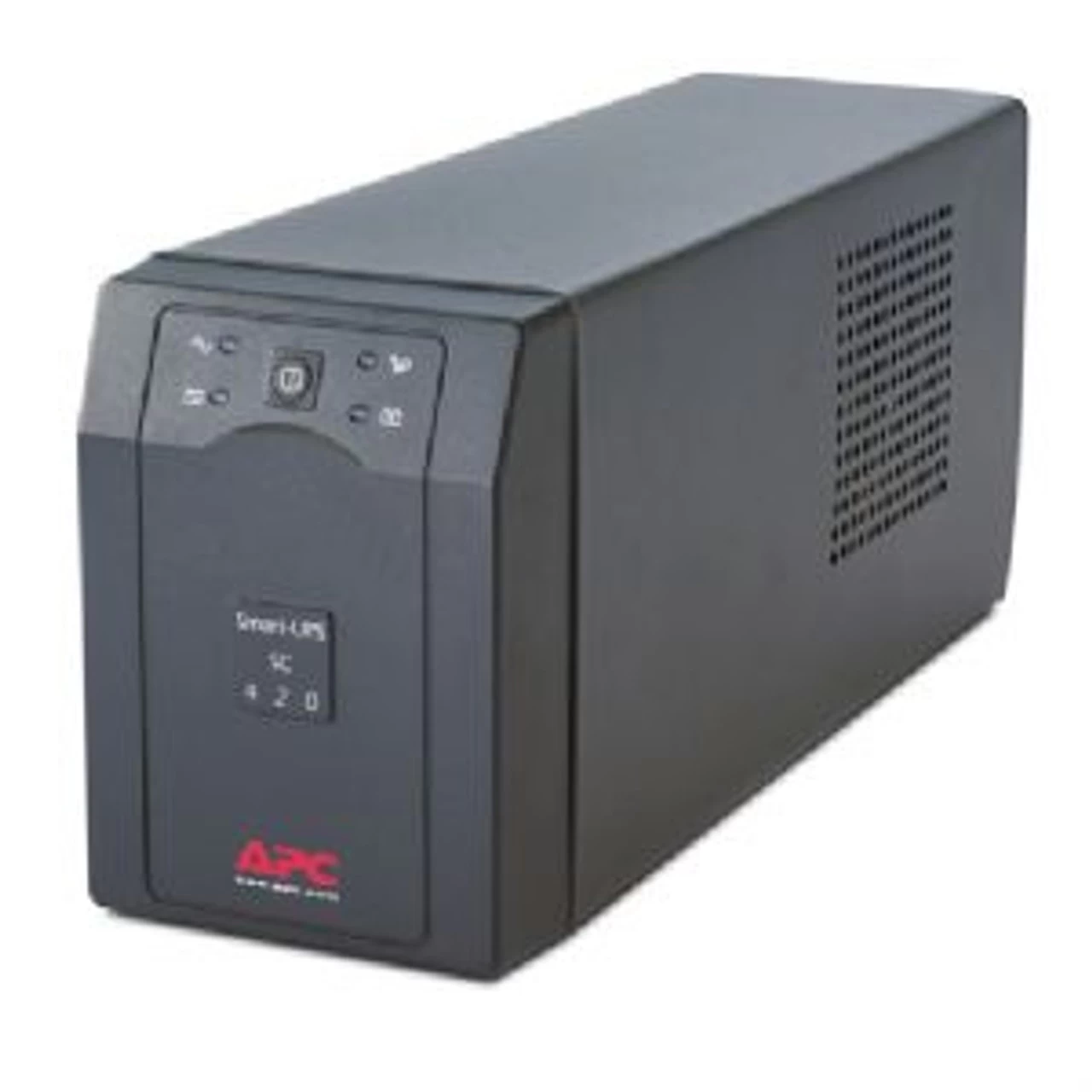

APC Smart-UPS SC 420VA 230V

Output: – Output Power Capacity: 260 Watts / 420 VA – Max Configurable Power: 260 Watts / 420 VA – Nominal Output Voltage: 230V – Output Voltage Distortion: Less than 5% at full load – Output Frequency (sync to mains): 47 – 53 Hz for 50 Hz nominal,57 – 63 Hz for 60 Hz nominal – Crest Factor: up to 5 : 1 – Output Connections: (1) IEC 320 C13 (3) IEC 320 C13 (2) IEC Jumpers Input: – Nominal Input Voltage: 230V – Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing) – Input Connections: IEC-320 C14 inlet – Input voltage range for main operations: 160-286V – Input voltage adjustable range for main operations: 151-302V Batteries & Runtime: – Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof – Typical recharge time: 3 hour(s) – Typical Backup Time at Half Load: 13.5 minutes (130 Watts) – Typical Backup Time at Full Load: 5.5 minutes (260 Watts) Communications & Management: Interface Port(s): DB-9 RS-232 – Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators – Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering: – Surge energy rating: 320 Joules – Filtering: Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449 – Dataline protection: RJ-45 Modem/Fax/DSL/10-100 Base-T protection Physical: – Maximum Height: 168.00 mm – Maximum Width: 119.00 mm – Maximum Depth: 368.00 mm – Net Weight: 9.09 KG
